Users, Groups and Permissions

Stroom separates two questions. Authentication asks who you are, and is answered by an identity provider. Authorisation asks what you may do, and is always answered by Stroom itself, using users, groups and permissions.

Signing in

Stroom signs users in with OpenID Connect. The identity provider is set by stroom.security.authentication.openId.identityProviderType:

INTERNAL_IDP (the default): Stroom is its own identity provider and holds the accounts and passwords itself.
EXTERNAL_IDP: an existing OpenID Connect provider holds the accounts, and Stroom sends the browser to it to sign in. Password policy and account recovery are then handled by that provider.

Stroom can also sit behind an authenticating reverse proxy that completes the sign-in itself and passes Stroom a verified identity. This is configured under stroom.security.authentication.edgeAuthentication.

Security setup covers choosing between them and wiring up an external provider, including the claim mapping, which decides how a person is matched to the user record holding their permissions.

Accounts and users

An account is an identity in the internal identity provider: a user ID, a password and, optionally, an email address for password resets, which must be unique if set. Passwords set in Stroom, and by create_account, must pass the policy under stroom.security.identity.passwordPolicy: at least minimumPasswordLength characters (8 by default) and an estimated strength of at least minimumPasswordStrength, on a scale of 0 to 4 (3 by default). Accounts exist only when Stroom is its own identity provider, and are managed from Security > Manage Accounts.

A user is Stroom's record of a person (or a service), whichever identity provider is in use. Users hold group memberships and permissions, and every audited action is attributed to one.

An account can be in three independent states, and any of them stops it signing in:

State	Set by	Cleared by
Disabled	An administrator	An administrator
Locked	Stroom, after `stroom.security.identity.failedLoginLockThreshold` wrong passwords in a row (3 by default)	Time (`failedLoginLockDuration`, 30 minutes by default), a password reset if allowed, or Unlock
Inactive	The Account Maintenance job, when an account has not been used for a configured period	A sign-in, if `reactivateInactiveAccountsOnLogin` is on, or Reactivate

Users and groups

Users are managed from Security > Users and groups from Security > User Groups. Both need the Manage Users application permission.

A group is a set of users and other groups. Groups can be nested: if a user is in Team A and Team A is in Division 123, the user holds every permission granted to either group. Granting permissions to groups rather than to individuals means that when someone joins or leaves a team, you only change the group's membership.

Opening a user or group shows its Application Permissions, Document Permissions and User Groups on separate tabs.

Disabling a user

Untick Enabled on a user to stop them using Stroom. It takes effect immediately: their sessions on every node are ended, their tokens are revoked, and they are refused from then on, whether they sign in interactively or present a token. This works with any identity provider.

Warning

Disabling an account is not the same. It stops the person signing in again, but a session they already have keeps working. To stop someone at once, disable the user.

Application permissions

Application permissions allow actions that are not tied to a single document, such as managing nodes or viewing raw data. Grant them from Security > Application Permissions, or from the user's or group's own tab. The key ones are:

Permission	Allows
Administrator	Everything, including every document.
Manage Users	Managing users, groups and permissions, and other users' API keys.
Manage API Keys	Managing your own API keys.
Manage Processors	Managing processors and processor filters.
Manage Jobs, Manage Nodes, Manage Properties	The Jobs, Nodes and Properties screens.
Manage Policies	The Data Retention screen.
Manage Volumes, Manage Index Shards	Data and index storage.
Data - View, Data - Import, Data - Export, Data - Delete	Viewing, uploading, downloading and deleting stream data.
Pipeline Stepping	Stepping data through a pipeline. See Pipeline debugging.
Import Configuration, Export Configuration	Importing and exporting content.
Change Owner	Making another user the owner of a document or folder.
Annotations	Creating and viewing annotations.
Download Search Results	Downloading results from a dashboard.

There are a few more, such as Manage Cache, Manage Tasks, Manage DB, Credentials and the Stroom Proxy permission for proxy service accounts. The screen describes each one.

Document permissions

Document permissions control what a user or group can do with one document or folder. There are five levels, and each includes every level below it:

Permission	Allows
Owner	Everything Delete allows, plus changing the document's permissions.
Delete	Everything Edit allows, plus deleting it.
Edit	Everything View allows, plus editing, moving and renaming it.
View	Seeing it in the explorer tree, opening it read-only, copying and exporting it.
Use	Using it without seeing it, for example querying an index from a dashboard.

A user with no permissions and no groups sees an empty explorer tree and can't create anything. Holders of Administrator have every permission on every document.

To change a document's permissions you need Owner on it (or Administrator). Right-click it and choose Permissions. Security > Document Permissions lets you find and change permissions across many documents at once.

Folders and create permissions

Permissions on a folder apply to the folder itself, not to what is inside it. Each document has its own permissions. A folder is still shown in the tree if you can see anything below it, though you can't open it without View.

A folder can also carry create permissions, one per document type. A user who has only been given permission to create dashboards and queries in a folder can create those two types there and nothing else.

How permissions are passed on

Stroom copies permissions rather than looking them up the tree:

Creating a document: the Permissions option in the create dialog is Destination by default, which copies the folder's permissions to the new document. None doesn't. Either way, you become its owner.
Changing a folder's permissions: you can apply the change to the folder alone or to all its descendants.
Moving or copying: choose None (remove all permissions), Source (keep the current ones), Destination (replace them with the destination folder's) or Combined (keep the current ones and add the destination folder's). Every option except Source needs Owner on the item.

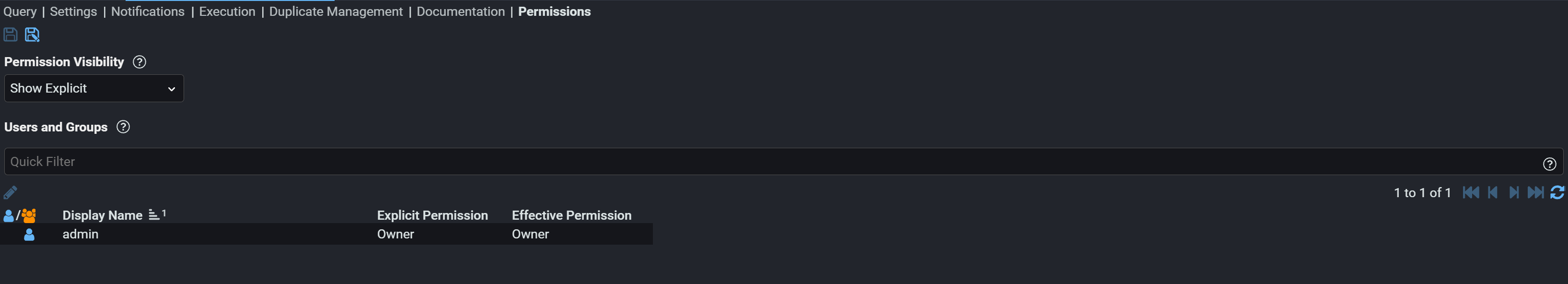

The permissions tab of a Stroom document, here an analytic rule. Permission visibility is set to show explicit permissions, and the users and groups table lists a single entry: the admin user, with Owner as both its explicit and its effective permission. — A document's Permissions tab. The two columns are the point: an explicit permission is one granted on this document, an effective one includes everything inherited from a folder or a group.

API keys

Scripts and other systems call Stroom's API with an API key. Create one from Security > Manage API Keys, choose the user it belongs to and set an expiry date (365 days by default, set by stroom.security.identity.token.defaultApiKeyExpiration). Short expiry periods are safer if a key leaks. The expiry date shows in red once a key is within 30 days of expiring, followed by (EXPIRED) once it has, and Stroom logs a warning whenever such a key is used.

The full key is shown once, when it is created. Stroom stores only a hash of it, so copy it straight away. Afterwards the key is recognisable by its prefix. A key can be disabled or deleted at any time.

Send the key in an Authorization: Bearer <key> header. The call runs with the permissions of the key's user, so give scripts a service user with only the permissions they need.

Manage API Keys lets you manage your own keys. Managing other users' keys also needs Manage Users.

Sessions and tokens

Signing in creates a session, and Stroom issues tokens to prove who a user is to Stroom and between nodes.

User > Sign Out Other Sessions ends all of your sessions except the current one, on every device and every node.
Security > User Access shows each user's sessions and tokens across the cluster. An administrator can end a user's sessions and revoke their tokens from here.

Action	Ends sessions and tokens	Stops signing in again
End sessions and revoke tokens (User Access)	Yes	No
Disable the user (Users)	Yes	Yes
Disable the account (Manage Accounts)	No	Yes

Warning

With an external identity provider, revoking a user's Stroom sessions doesn't end their session with the provider, so they may be signed straight back in. Disable the user in Stroom, at the provider, or both.

When Stroom is its own identity provider, token lifetimes are set under stroom.security.identity.token:

Token	Property	Default
Access token	`accessTokenExpiration`	60 minutes
Refresh token	`refreshTokenExpiration`	30 days
Password reset link	`emailResetTokenExpiration`	10 minutes

A refresh token can be used only once. If one is presented twice, which suggests it has been copied, Stroom withdraws it and every token issued from it.
